1. Equipment Introduction

Name: Fluidised Bed Formation Hydrodynamics Laboratory equipment Didactic Equipment
Brand: Jinan Minrry Technology Equipment Co.Ltd.
SKU: MR-CE 200
Availability: InStock
Rating: 5 (1 reviews)

1.1 Overview

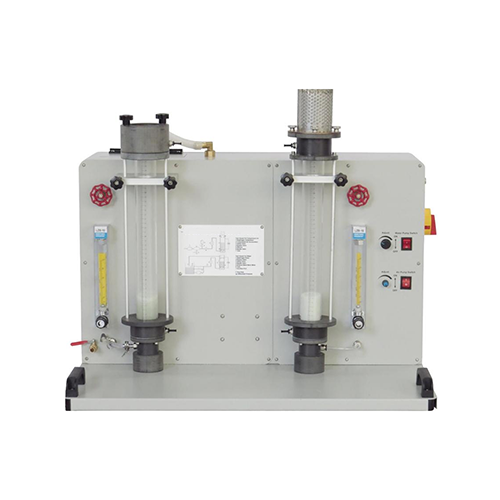

This equipment is a comprehensive experimental device, mainly used to demonstrate and study the behavior of liquids and gases in fluidized beds. It includes multiple functional modules, such as liquid fluidized bed display module, gas fluidized bed display module, water flow measurement and regulation module, and air flow and regulation module. These modules work together to simulate the fluidized bed system in the industrial process and provide an in-depth understanding of fluid dynamics.

1.2 Features

Versatility: The equipment can demonstrate a variety of physical phenomena of liquids and gases in fluidized beds, covering a wide range of experimental needs.
Strong interactivity: It is equipped with observation windows and measurement points, which is convenient for students or researchers to directly observe fluid behavior and perform data analysis.
Precise control: Through the measurement and regulation modules of water flow and air flow, precise control of flow rate and flow velocity is achieved to ensure the accuracy of the experiment.
High safety: Equipped with overflow and drain to prevent excessive overflow of water and ensure the safety of the experimental process.
Easy to operate: The design is user-friendly, easy-to-operate control panel and regulating valve, so that even beginners can quickly master the use of the equipment.
Scalability: The design of the equipment allows modules to be easily added or replaced to meet different teaching or research needs.
Efficient filtration: The built-in filter ensures the cleanliness of the gas entering the fluidized bed and maintains a pure environment for the experiment.
Stable water supply: The water tank module provides a stable water source to ensure the continuity of water supply for long-term experiments.
Environmental protection and energy saving: The equipment optimizes energy use and reduces energy consumption during operation, meeting environmental protection standards.
Educational tool: It is not only a research tool, but also an important experimental equipment in educational practice, helping students better understand the relevant scientific principles.
Through these features, the device becomes an efficient and versatile tool suitable for teaching and scientific research in higher education institutions and research institutions.

2. Technical parameters

Input power: single-phase three-wire AC220V
Weight: about 80Kg
Working conditions: Ambient temperature: -10℃～+40℃ Relative humidity: <85% (25℃)
Size: about 750x610x1010mm

3. Component list

3.1 Main part

No.	Name
1	Overflow
2	Liquid fluidized bed display module
3	Water flow measurement and regulation module
4	Filter
5	Gas fluidized bed demonstration module
6	Air flow and regulation module
7	Water tank
8	Control valve
9	Control valve
10	Drain

3.2 Power box part

No.	Name
1	Liquid fluidized bed control module
2	Gas Fluidized Bed Control Module
3	Power switch module
4	Power Entry Module

3.3 Accessories

No.	Name	Qty
1	Handheld Digital Differential Pressure Meter	1
2	European power cord	1
3	Glass beads 30 mesh	2
4	Glass beads 60 mesh	4

4. Experiment list

Experiment 1 Experiment on the formation of a gas fixed bed into a fluidized bed
Experiment 2 Experiment on the formation of a liquid fixed bed into a fluidized bed
Experiment 3 Comparison of pressure loss between a gas fixed bed and a gas fluidized bed
Experiment 4 Comparison of pressure loss between a liquid fixed bed and a liquid fluidized bed
Experiment 5 Experiment on the flow rate and pressure loss of a gas fluidized bed
Experiment 6 Experiment on the flow rate and pressure loss of a liquid fluidized bed
Experiment 7 Changes in pressure loss of a gas fluidized be
