1. Equipment Introduction

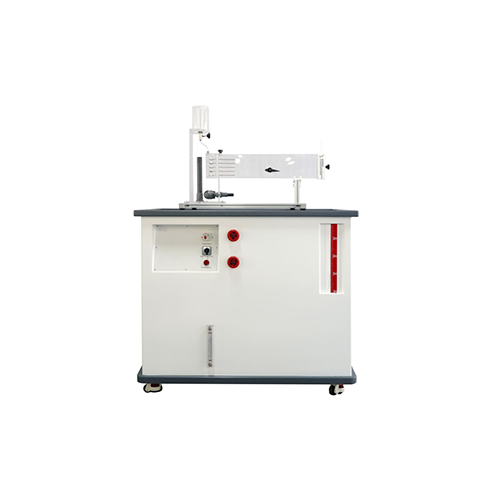

Name: Flow Visualisation Channel Hydrodynamics Lab Equipment Didactic Equipment
Brand: Jinan Minrry Technology Equipment Co.Ltd.
SKU: MR3102
Availability: InStock
Rating: 5 (1 reviews)

1.1 Overview

The flow visualization channel fluid dynamics laboratory equipment teaching equipment can be used to visualize the flow around the towed body and the flow phenomenon in the open channel, including the following:
(1) The towed body or weir is fixed in the experimental water tank, and the streamlines can be made visible by injecting contrast agent;
(2) The experimental water tank is made of transparent material, so the formation of streamlines and vortices can be easily observed;
(3) The water level in the experimental water tank can be adjusted by the sluice at the inlet and the weir at the outlet;
(4) There are two weirs and four different towed bodies available for experiments;
(5) The rectifier ensures that the water flow is uniform and without vortex;
(6) The experimental unit can be easily and safely placed on the workbench of the fluid base module, and the fluid base module can also be used to measure the flow rate.

1.2 Features

(1) The equipment layout is reasonable, beautiful, clear in structure, and has a strong sense of integrity.
(2) It has a good safety protection system.
(3) It adopts an aluminum alloy frame structure and is light in weight.
(4) The device can be used to study the flow around the towed body and the flow phenomenon in the open channel.

2. Technical parameters

(1) Input power: single-phase AC 220C±10%
(2) Fluid experiment basic module
Weight: 116kg
Size: 1330*830*1250
(3) Flow visualization channel fluid dynamics laboratory equipment
Weight: 34Kg Size: 960mm*780mm*790mm
(4) Ambient temperature: 10℃～30℃
(5) Relative humidity: <75% (25℃)

3. Component list

3.1 Main

No.	Name
1	Fluid experiment basic module
2	Overflow pipe
3	Fluid experiment basic module water supply port
4	Water outlet weir plate
5	Experimental water tank
6	Drag body
7	Flow straightener
8	Contrast agent dispenser
9	Contrast agent tank
10	Adjusting bolt
11	Aluminum profile frame

3.2 Fluid Experiment Basic Module

The Fluid Experiment Basic Module mainly provides basic equipment for a single experiment, including:
(1) Water supply in a closed loop;
(2) Determination of volume flow;
(3) Positioning of experimental units on the working surface of the basic module;
(4) Collection of return water;
(5) The closed water circuit consists of a bottom tank with a powerful submersible pump and a measuring tank arranged above, where the return water collection measuring tank is stepped for larger and smaller volume flows;
(6) Measuring beakers are used for very small volume flows;
(7) Volume flow is measured using a stopwatch;
(8) The top work surface enables various experimental units to be easily and safely positioned.

No.	Name
1	Power control switch
2	Switch control knob
3	Working indicator light
4	Flow control valve
5	Pressure relief valve
6	Metering tank level indicator
Internal structure	Storage tank with submersible pump

3.3 Components

Component 1: Contrast Agent Tank
Component 2: Adjusting Needle Valve
Component 3: Plum Handle Screw
Component 4: Overflow Pipe
Component 5: Contrast Agent Dispenser and Distribution Pipe
Component 6: Water Supply Pipe
Component 7: Towing Body Fixing Screw
Component 8: Slot
Component 9: Water outlet weir and locking screw
Component 10: Drag body
Component 11: Accessories
Includes: measuring cup, power cord, water supply pipe, clamp, stopwatch

4. Experiment list

Experiment 1 Flow visualization channel fluid dynamics laboratory equipment teaching equipment introduction experiment
Experiment 2 Streamline visualization experiment around various drag bodies or weirs
Experiment 3 Supercritical flow and subcritical flow experiment
Experiment 4 Effect of different drag bodies or weirs on fluid velocity or flow rate
