1. Equipment Introduction

Name: Visualization of Streamlines in an Open Channel Hydrodynamics Lab equipment Teaching Equipment
Brand: Jinan Minrry Technology Equipment Co.Ltd.
SKU: MR-HM 150.21A
Availability: InStock
Rating: 5 (1 reviews)

1.1 Overview

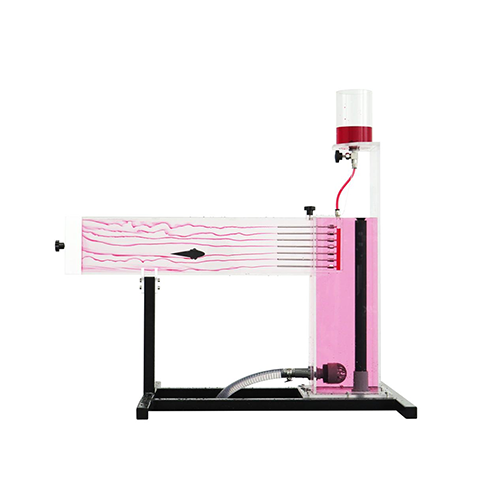

The flow visualization channel fluid dynamics laboratory equipment teaching equipment can be used to visualize the flow around the towed body and the flow phenomenon in the open channel, including the following:
(1) The towed body or weir is fixed in the experimental water tank, and the streamlines can be made visible by injecting contrast agent;
(2) The experimental water tank is made of transparent material, so the formation of streamlines and vortices can be easily observed;
(3) The water level in the experimental water tank can be adjusted by the sluice at the inlet and the weir at the outlet;
(4) There are two weirs and four different towed bodies available for experiments;
(5) The rectifier ensures that the water flow is uniform and without vortex;
(6) The experimental unit can be easily and safely placed on the workbench of the fluid base module, and the fluid base module can also be used to measure the flow rate.

1.2 Features

(1) The equipment layout is reasonable, beautiful, clear in structure, and has a strong sense of integrity.
(2) It has a good safety protection system.
(3) It adopts an aluminum alloy frame structure and is light in weight.
(4) The device can be used to study the flow around the towed body and the flow phenomenon in the open channel.

2. Technical parameters

(1) Input power: single-phase AC 220V±10%
(2) Weight: 980*680*940mm
(3) Dimensions: <40kg
(4) Ambient temperature: 10℃～30℃ Relative humidity: <75% (25℃)

3. Component list

3.1 Main introduction

No	Name
1	Aluminum frame
2	Overflow pipe
3	Water supply port for fluid experiment base module
4	Water outlet weir plate
5	Experimental water tank
6	Drag body
7	Flow straightener
8	Contrast agent dispenser
9	Contrast agent tank
10	Adjusting bolt

3.2 basic module of fluid experiment

The basic module of fluid experiment mainly provides basic equipment for a single experiment, including:

No	Name
1	Power control switch
2	Switch control knob
3	Working indicator light
4	Flow control valve
5	Pressure relief valve
6	Gas level indicator for metering tank
Internal structure	Storage tank with submersible pump
Note: This module needs to be purchased separately. It is more convenient to use it with the MR-HM 150.21A open channel flow visualization device

4. Experiment list

Experiment 1 Flow visualization channel fluid dynamics laboratory equipment teaching equipment introduction experiment
Experiment 2 Streamline visualization experiment around various drag bodies or weirs
Experiment 3 Supercritical flow and subcritical flow experiment
Experiment 4 Effect of different drag bodies or weirs on fluid velocity or flow rate
