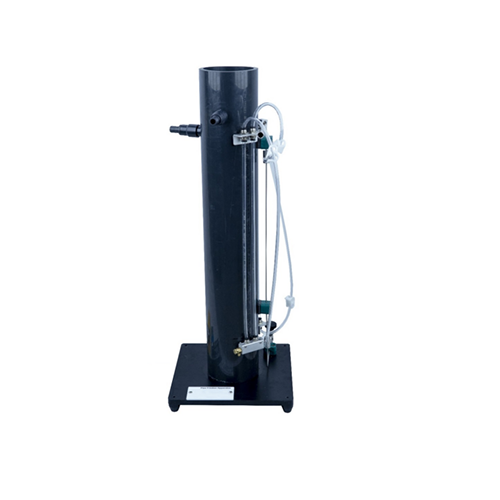

The pipeline friction device consists of a test pipeline (mounted vertically on the drilling rig), a constant pressure head tank, a flow control valve, a bleed valve and two sets of pressure gauges for measuring head loss in the pipeline.
1.2 Features
The equipment is compact and flexible and can be used for experimental simulations in a variety of environmental scenarios, making it easier for students to observe experimental phenomena. The equipment requires almost no maintenance, and the entire equipment is made of rust-proof materials.
Experiment 1 Determining the relevant friction coefficient in a certain speed range in laminar flow through a pipe Experiment 2 Selection of pipeline formula Experiment 3 Fluid Frictional Resistance System Measurement Experiment 4 Determination of friction coefficient and local resistance coefficient
